NFC Programming Application

SW6000

Shure identification cards allow participants to be identified by name during a meeting. Identifying current and upcoming speakers makes meetings more efficient and productive. When the participant inserts their ID card into a compatible Microflex® Complete (MXC) Digital Conference System or Microflex® Complete Wireless (MXCW) Digital Conference System conference unit, they will then be identified by name instead of seat number on conference unit screens and electronic signs.

<ul>
	<li>When SW6000 Conference Management Software is also used, details about the participant’s role, privileges, and more can be recognized by the system. By requiring attendees to log in with an ID card, only the permitted users may participate, and meeting privacy and security are enhanced.</li>
	<li>The MXCNFC card utilizes NFC technology and is compatible with MXC and MXCW conference units that include a card reader slot.</li>
	<li>The MXCDUAL card includes both NFC and chip card technology and is compatible with MXC, MXCW, and legacy DCS6000 conference units.</li>
	<li>Shure ID cards are programmed for use with MXC or MXCW systems using the widely available ACR1252U NFC card reader/writer manufactured by Advanced Card Systems, Ltd., and the Shure NFC Programming Application. </li>
	<li>Programming MXCDUAL cards for use with DCS6000 conference units requires the CP 6001 chip card programmer sold by Shure.</li>
	<li>Shure identification cards are tested and validated to work with Shure conference systems. Other NFC or chip card formats may not operate reliably.</li>
</ul>

MXC Command Strings

Conference

Microflex Complete Wireless

Microflex Complete

Conferencing & Meetings

Identifying current and upcoming speakers makes meetings more efficient and productive.

MXCNFC Card & MXCDUAL Card

MXCNFC Card & MXCDUAL Card,

MXCDUALCARD-10PK

MXCNFCCARD-10PK

The MXCW640 Wireless Conference Unit brings wireless convenience to discussions and conferences. The unit can be configured for Chairman, Delegate, Listener, or Ambient Microphone operation and supports multiple microphone activation modes to suit different meeting styles.

The 4.3-inch color touchscreen provides easy access to meeting information, including the speaker list, voting, and interpretation channel selection. The 10-pin modular connection accommodates MXC-series gooseneck microphones and can be locked for added security. The built-in loudspeaker provides high intelligibility and remains on even when the microphone is active.

Speak and mute/function buttons provide positive feedback when pressed and include LED status indicators. An NFC ID card slot allows identification of meeting participants.Dual 3.5mm headphone jacks with individual volume controls provide comfortable listening to interpretation channels or floor audio through headphones or earphones.

The MXCW640 operates for over 11 hours on a fully-charged battery. The SB930 rechargeable Li-Ion battery (included) slides into the rear of the conference unit, and is removable for charging in the MXCWNCS networked charging station. A micro-USB port allows the battery to be charged while installed, while the conference unit is operating.

Wireless Conference Unit

MXCW640 CAD

MXCW User Guide

MXCW640 Architect Specifications

MXCW Spec Sheet

MXCW Brochure

MXC Brochure

<ul>
	<li>4.3 inch color touchscreen displays user controls, voting, or meeting information</li>
	<li>10-pin modular lockable connection for MXC-series gooseneck microphones</li>
	<li>Built-in loudspeaker remains on when microphone is activated</li>
	<li>Speak and mute/function buttons with LED status indicators</li>
	<li>NFC ID card slot for participant identification</li>
	<li>Dual 3.5mm headphone jacks with volume controls</li>
	<li>SB930 removable rechargeable Li-Ion battery (included) provides over 11 hours of runtime</li>
</ul>

Corporate

Education

Government

Touring/Rental

Wireless Conference Unit for Microflex Complete Wireless conference system.  Configurable as Chairman, Delegate, Listener, or Ambient Microphone unit.

MXCWAPT

Discussion

The MXCW640 Wireless Conference Unit combines a microphone, loudspeaker, and user controls in an integrated wireless unit that complements any meeting space.  Wireless convenience eliminates the need to drill holes or route cables, and makes setup for temporary meetings or in rooms with flexible seating quick and easy.  A smart rechargeable Li-Ion battery (included) lasts over 11 hours, and a choice of gooseneck microphones provides excellent sound voice capture.

MXCW640

MXCW640, MXCW 640

Board Room

Conference Room

Hotel & Convention

Huddle Room

Meeting Room

Parliament

5 Pin XLR

Device Discovery

IntelliMix® Room

The Microflex Complete Wireless system combines a fully-featured discussion system with wireless freedom for government, corporate, or educational facilities.It speeds setup in dynamic meeting spaces or at temporary meetings in hotels and conference centers.With no cable limitations, Microflex Complete Wireless is ideal for use in rooms with flexible seating or architectural significance.

Automatic Interference Detection and Avoidance technology delivers reliable RF transmission even in the most congested RF environments, and robust AES-128 encryption provides enhanced privacy.Each wireless conferencing unit is powered by a smart Lithium-Ion rechargeable battery, and a single access point can control up to 125 wireless units without additional software or licenses.

Digital Conference Systems

MXCW Architect Specifications

MXCWNCS Command Strings

MXCW Command Strings

MXCWAPT CAD

SB930 CAD

MXCWNCS CAD

SB930 Architect Specs

<ul>
	<li>RELIABLE WIRELESS PERFORMANCE
	<ul>
		<li>Automatic Frequency Coordination for quick and easy setup</li>
		<li>Uses global 2.4/5 GHz spectrum including DFS channels to maximize available spectrum</li>
		<li>Built-in RF spectrum manager constantly monitors available channel quality</li>
		<li>Automatic Interference Detection and Avoidance resolves potential transmission problems in congested RF environments</li>
		<li>High spectral efficiency allows up to 125 units on one WLAN channel</li>
	</ul>
	</li>
	<li>EASY SETUP AND OPERATION
	<ul>
		<li>MXCWAPT Access Point mounts on wall, ceiling, or stand, and connects with one cable for audio, power, and control</li>
		<li>Each conference unit can be configured as Chairman, Delegate, Listener, or Ambient role</li>
		<li>Smart Lithium-Ion rechargeable battery lasts over 11 hours, recharges in under 4 hours</li>
		<li>Embedded browser-based interface allows remote monitoring and control by chairman or technician</li>
		<li>Speak/request list can be projected on video display without additional software</li>
		<li>Integrated NFC card technology in each conference unit allows participants to be identified by name instead of seat number, regardless of where they sit</li>
	</ul>
	</li>
	<li>BEST-IN-CLASS AUDIO PERFORMANCE
	<ul>
		<li>Proprietary Shure audio codec for natural, intelligible sound quality</li>
		<li>Automatic Gain Control for consistent speech levels for each talker</li>
		<li>Support for Automatic, FIFO (First-In/First-Off), and Manual microphone operating modes</li>
		<li>Gooseneck microphones include interchangeable Microflex cartridges and CommShield Technology for robust RF noise immunity</li>
		<li>Robust AES-128 audio encryption for enhanced privacy</li>
	</ul>
	</li>
</ul>

Quick setup

Reliable wireless

Scalable solution

Integrates anywhere

Why It’s Better

Microflex® Complete Wireless conference systems keep up with constantly changing logistics and demands without invasive installs.

How It Works

Microflex Complete Wireless - Quick Set Up

Why MXCW is the Best Choice | ISE 2019

The Importance of Secure Transmission | ISE 2019

Shure provides Microflex Complete Wireless Conferencing Units to the PSNI Global Alliance Meeting

Quality that’s in the Details

Microflex® Complete Wireless empowers meeting participants to share ideas and make decisions anywhere.  Advanced Shure wireless technology delivers reliable performance in any environment without complicated setup or cable limitations. Handsfree microphone activation provides touchless convenience for free-flowing conversations or choose manual or remote control for formal meetings.

Microflex Complete Wireless,

Council

Courtroom

Filter by product category, then series

Find a Dealer Near You

Please Choose a Country to See Available Dealers

Filter by dealer type

- Shure USA

Cable Length

Colors

Connector

Select a Combination

Frequency Band

Find my frequency

Furnished Cables

Furnished Capsules

Studio Kit

On Off Switch

Shape

Stand Type

Release Title

Viewing this video may result in cookies being placed by the vendor of the video platform to which you will be directed. Given the refusal of the deposit of cookies that you have expressed, in order to respect your choice, we have blocked the playback of this video. If you want to continue and play the video, you must give us your consent by clicking on the button below.

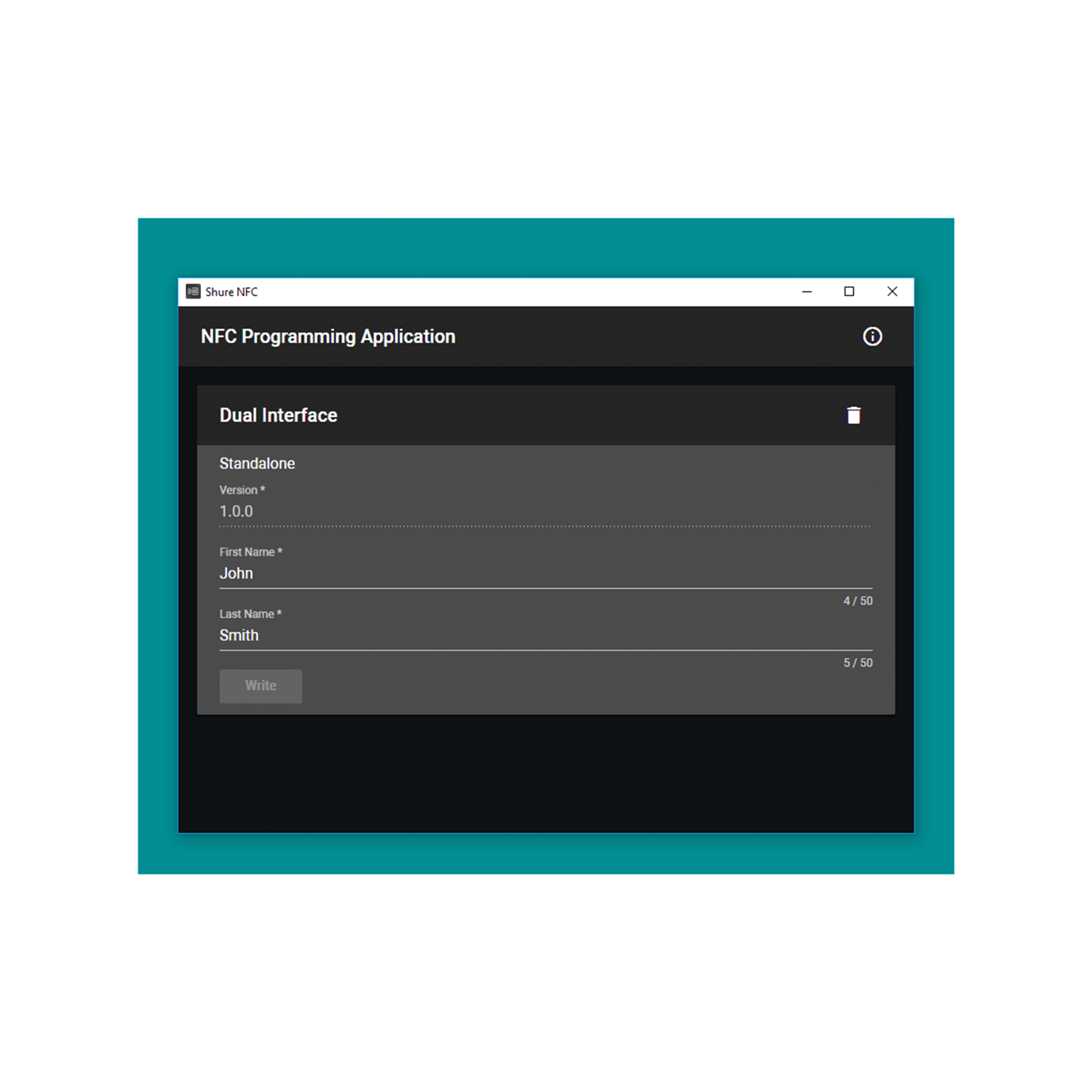

Allows you to program ID cards with meeting participant’s name for use with MXC and MXCW conference systems

The Shure NFC Programming Application is a free tool that allows you to program NFC identification cards with a meeting participant&rsquo;s first and last name.&nbsp; When the participant inserts their NFC ID card into a compatible MXC-series or MXCW-series conference unit, they will be identified by name instead of seat number.

The NFC Programming Application programs ACOS3-type contactless NFC cards used by MXC and MXCW conference units.&nbsp; The NFC Programming Application requires the <a href="http://www.acr1252.com/" target="_blank">ACR1252U</a> contactless reader/writer/programmer manufactured by Advanced Card Systems, Ltd.&nbsp; The ACR1252U programmer and blank ACOS3 contactless NFC cards are available from resellers who provide point-of-sale or security equipment.&nbsp; Dual-interface chip/NFC cards are available from Shure as part number MXC-DUALCARD-10PK.

<ul>
	<li>Programs ID cards for use with MXC and MXCW conference systems</li>
	<li>Requires <a href="http://www.acr1252.com/" target="_blank">ACR1252U</a> contactless reader/writer/programmer</li>
	<li>Works with Shure MXC-DualCard-10PK dual-interface NFC/chip cards or ACOS3-type contactless NFC cards</li>
	<li>Requires 64-bit Windows 7 or 10</li>
</ul>

Commercial Installation

Allows you to program ID cards with meeting participant’s name for use with MXC and MXCW conference systems.

The Shure NFC Programming Application is a free tool that allows you to program NFC identification cards with a meeting participant’s first and last name.  When the participant inserts their NFC ID card into a compatible MXC-series or MXCW-series conference unit, they will be identified by name instead of seat number.  The NFC Programming Application requires the ACR1252U contactless reader/writer/programmer manufactured by Advanced Card Systems, Ltd.

NFC Programming Application,

NFC Programming Application
