It's a complex world for wireless microphones.
Axient™ Digital makes everything perfectly clear.
Incorporating the most innovative wireless audio technology in the world, Axient Digital was engineered from the ground up for professional productions that demand flawless execution.
With an unprecedented level of signal stability and audio clarity, plus flexible hardware options, advanced connectivity, and comprehensive control, it’s a wireless system built to take on the challenges of today—and tomorrow.

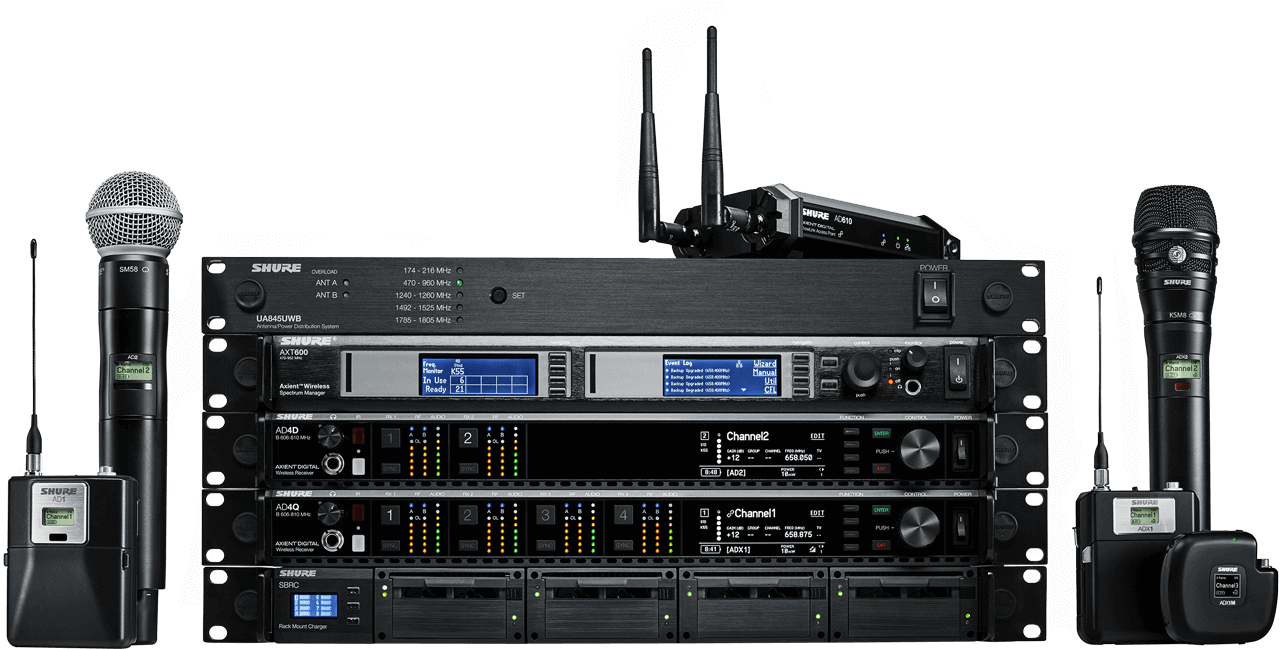

One System. Powerful Possibilities.
Both AD series and ADX series transmitters are compatible with a shared Axient Digital receiver platform. This scalable wireless system includes a groundbreaking micro-bodypack and provides incomparable sound for a wide range of applications and settings.
Reliability is in the air.
With outstanding signal quality in even the most complex, crowded environments, Axient Digital ensures maximum stability, range, and clarity for uncompromising audio you can trust — anywhere, every time.
-
Next-Gen Digital RadioA high-performance modulation scheme provides maximum signal stability.
-
Wide TuningUp to 184 MHz across all receivers and transmitters for broad strategic spectrum coverage.
-
Spectral EfficiencyA robust High Density mode dramatically increases system channel count.
-
Frequency DiversityTwo identical signals transmit on independent frequencies, with one taking over automatically should the other degrade.
Next-Gen Digital Radio & Channel Quality Metering
A high-performance modulation scheme uses patent-pending technology to provide maximum signal stability. The 5-segment Channel Quality meter allows for real-time analysis of RF signal-to-noise, enabling operating range assessments and visibility into potential interference.
True Digital Diversity
Mounting a better defense against multipath interference, fading events, and other RF anomalies, Axient Digital combines two discrete RF signals per receiver channel using a quality-based maximal-ratio-combining algorithm.

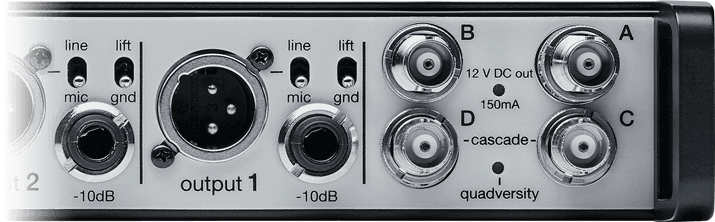

Quadversity™
By assigning four antenna inputs to a single channel via patented technology, Quadversity™ can provide extended coverage and the option for separate zones, plus added resistance against multipath interference and RF noise.
Wide Tuning Receivers & Transmitters
An expansive tuning bandwidth of up to 184 MHz across all receivers and transmitters supplies broad strategic spectrum coverage while simplifying inventories for both sellers and operators.
Spectral Efficiency
The robust High Density transmission mode enables a dramatic increase in system channel count, with up to 47 active channels per 6-MHz TV band (63 channels/8MHz) all while maintaining exceptional audio quality.
Operating Range
Selectable transmission modes and power levels enable optimum range and audio quality, with analog-type resilience, artifact-free muting, and fast signal recovery at end of range.
Frequency Diversity
Signal quality is maximized by transmitting two identical signals on independent frequencies. If the active signal degrades, the other takes over automatically. With the ADX2FD handheld transmitter, Axient Digital uses a patented technique to monitor and combine the transmissions for a flawless audio signal.
Interference Detection & Avoidance

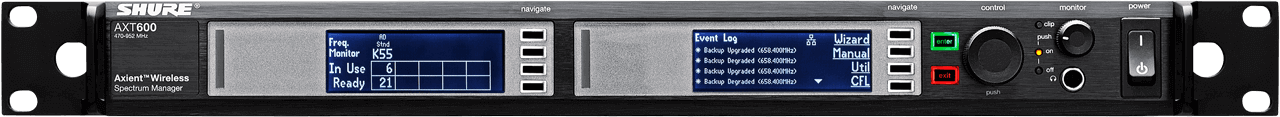

With real-time monitoring via the AXT600 Spectrum Manager, sound engineers can neutralize RF interference by manually switching the signal to a clear backup frequency, or by programming the system to do it automatically.
The sound of quality.
Axient Digital defies limitations for both RF and audio quality. With impressive low latency, transparent frequency response, and wide dynamic range, Axient Digital lets nothing get in the way of true, pure sound. No matter the setting, you'll hear Shure audio quality you can count on.
-
Ultra-Low LatencyImpressive low latency guarantees seamless, cohesive sound.
-
Digital OutputsDante™ digital audio, AES3 and AES67 outputs included.
-
EncryptionAn AES 256-bit encrypted signal ensures secure transmission.
Ultra-Low Latency
An impressive two milliseconds from microphone transducer to analog output guarantees seamless, cohesive sound.*
Transparent Sound
A flat frequency response over a wide range from 20 Hz to 20 kHz provides accurate audio reproduction.

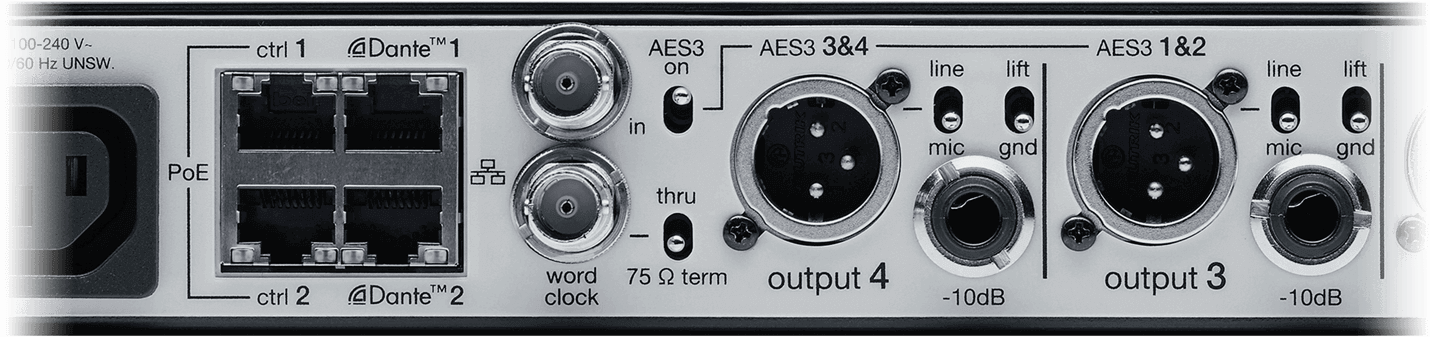

Digital Outputs
Dante™ and AES67 digital audio transmits via a configurable 4-port switch for combined control / audio or separate streams with redundancy. AES3 output provides an additional option for pristine digital audio.
Encryption
An Advanced Encryption Standard (AES) 256-bit encrypted signal ensures that every transmission is secure and unbreachable.
Dynamic Range
Wide dynamic range of >120 dB yields impressive signal-to-noise performance and accurate transient response.
See through the noise.
ShowLink™ remote control, Shure Wireless Workbench® software, the ShurePlus™ Channels app, and networked battery monitoring provide unmatched control and insight for seamless performance.
-
ShowLinkReal-time remote control of ADX transmitter parameters so settings can be changed right from the control booth.
-
Wireless WorkbenchRobust control software with advanced RF spectrum and Timeline plotting, frequency coordination, and live monitoring.
-
ShurePlus ChannelsConvenient mobile monitoring for iOS devices.
-
Networked ChargingSmart batteries and chargers provide remote monitoring of critical parameters.

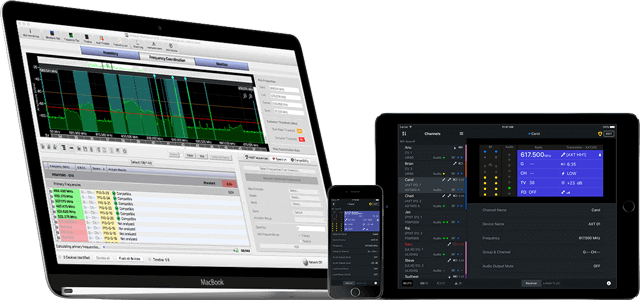

Wireless Workbench & ShurePlus Channels
Wireless Workbench offers total control with an enhanced interface, advanced RF spectrum and Timeline plotting, frequency coordination, and live performance monitoring. Mobile control and monitor capabilities also are available with the ShurePlus Channels iOS app.

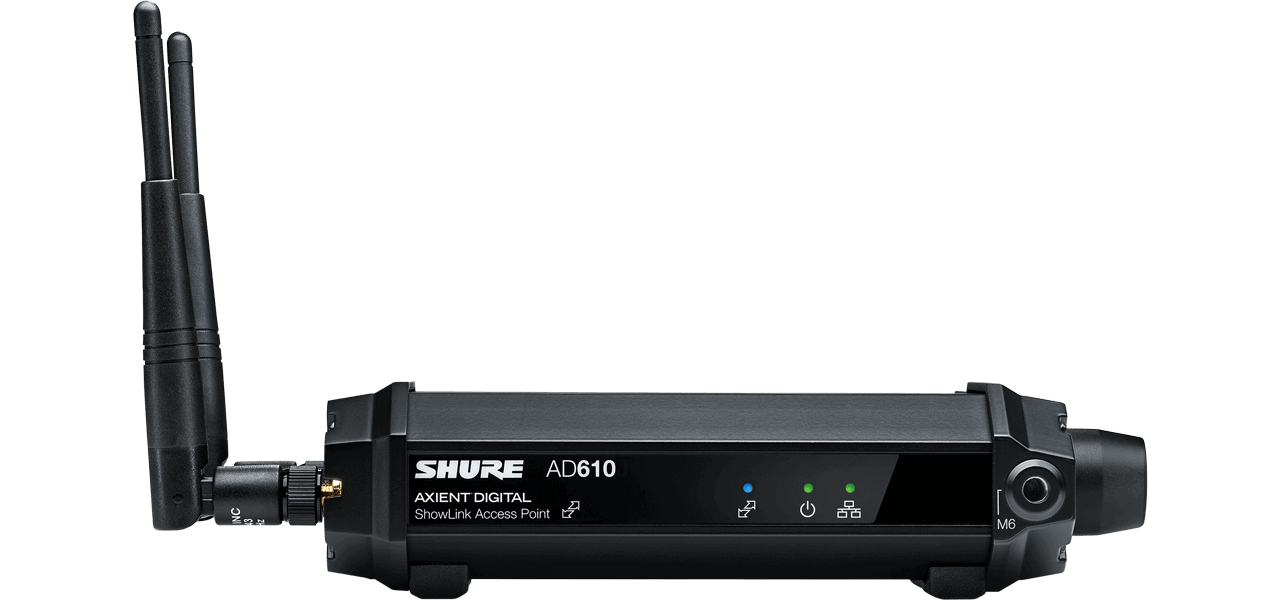

ShowLink Remote Control
ADX transmitters with ShowLink give engineers comprehensive, real-time remote control of all transmitter parameters using a robust 2.4 GHz diversity wireless connection, so settings can be changed right from the control booth.
Dante™ Cue & Dante™ Browse
With the push of a button, Dante Cue enables monitoring of every Axient Digital channel on the network through a single headphone output. Plus, Dante Browse offers high-fidelity monitoring of any Dante-enabled device on the network.

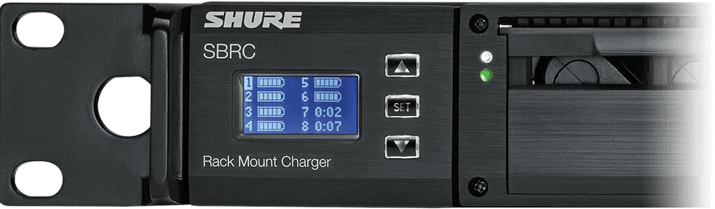

Networked Charging
Smart, high-performance batteries and chargers provide detailed visibility and remote monitoring of critical parameters such as remaining runtime in hours and minutes, and charging status.
Right-sized receiver solutions.
Dual and quad receiver options open the gateway to the full range of features, from high-performance RF and transparent digital audio to software control. With Quadversity™, the AD4Q can assign four antennas to a single channel for greater coverage and signal quality.
-
Dual and quad receiver options available.
-
Common receiver platform for all AD and ADX transmitters.

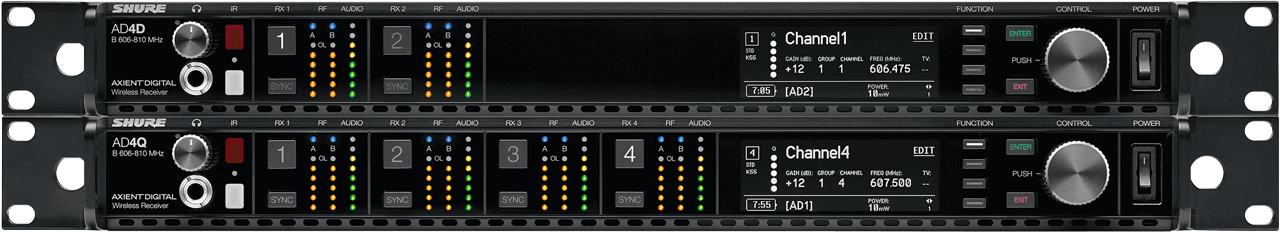

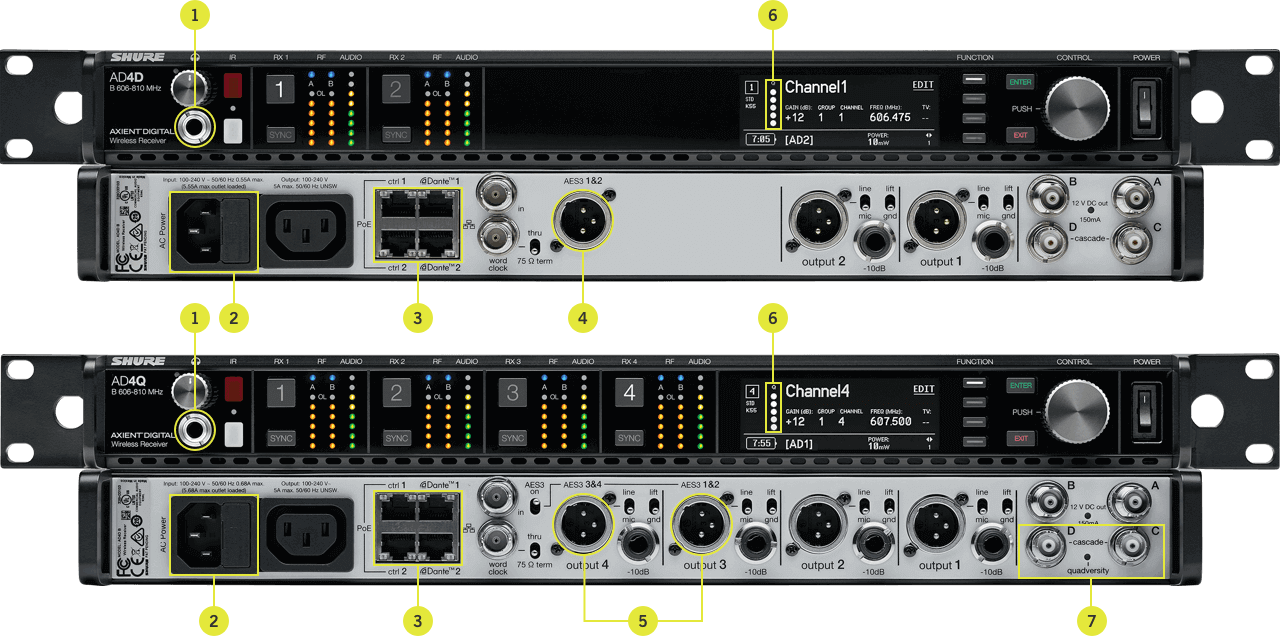

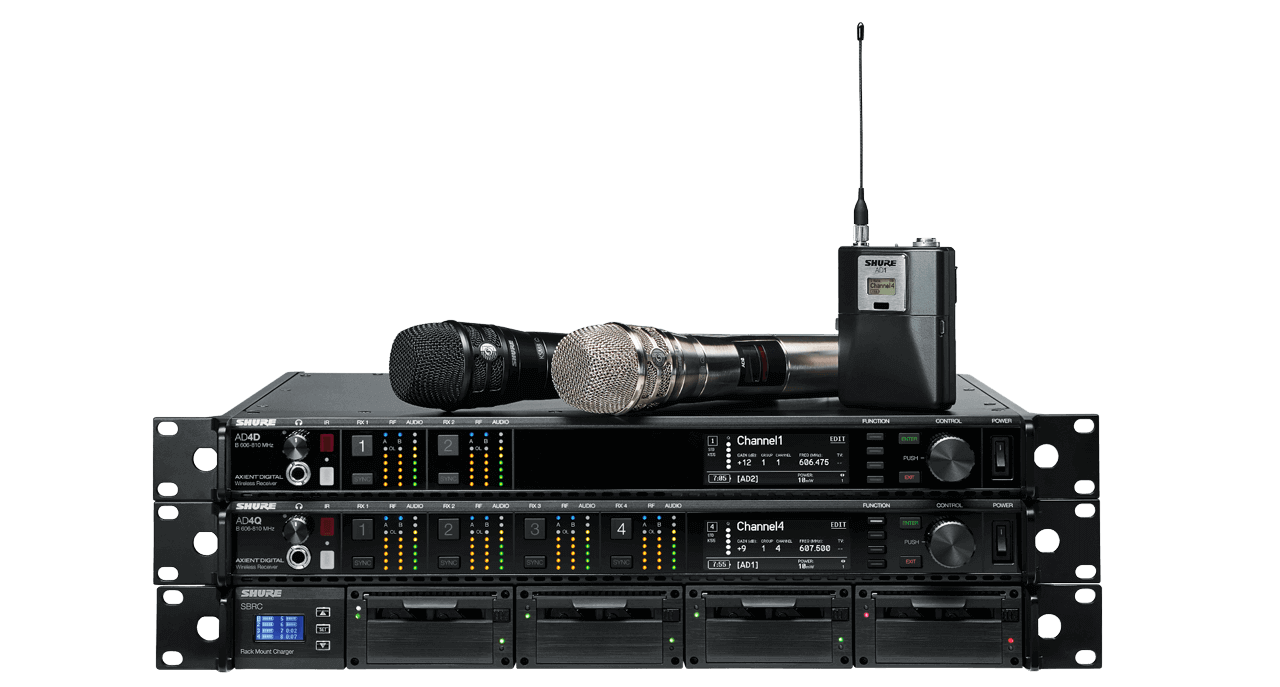

AD4D Two-Channel Digital Receiver & AD4Q Four-Channel Digital Receiver
Compatible with all AD and ADX transmitters.- Wide tuning range up to 184 MHz
- True digital diversity reception per channel for drop-out resistance
- Networked control with Wireless Workbench software and ShurePlus Channels app
- DC module version available to support redundant power
- Quadversity mode for extended antenna coverage and improved RF signal-to-noise (AD4Q only)
- 1Front panel headphone jack enables Dante Cue and Dante Browse monitoring
- 2Locking AC connectors
- 3Configurable Ethernet switch for redundant Dante or AES67 digital output
- 4AES3 output
- 5Switchable XLR and AES3 outputs
- 6Channel Quality meter displays RF signal-to-noise
- 7Cascade antenna ports can be switched to Quadversity inputs

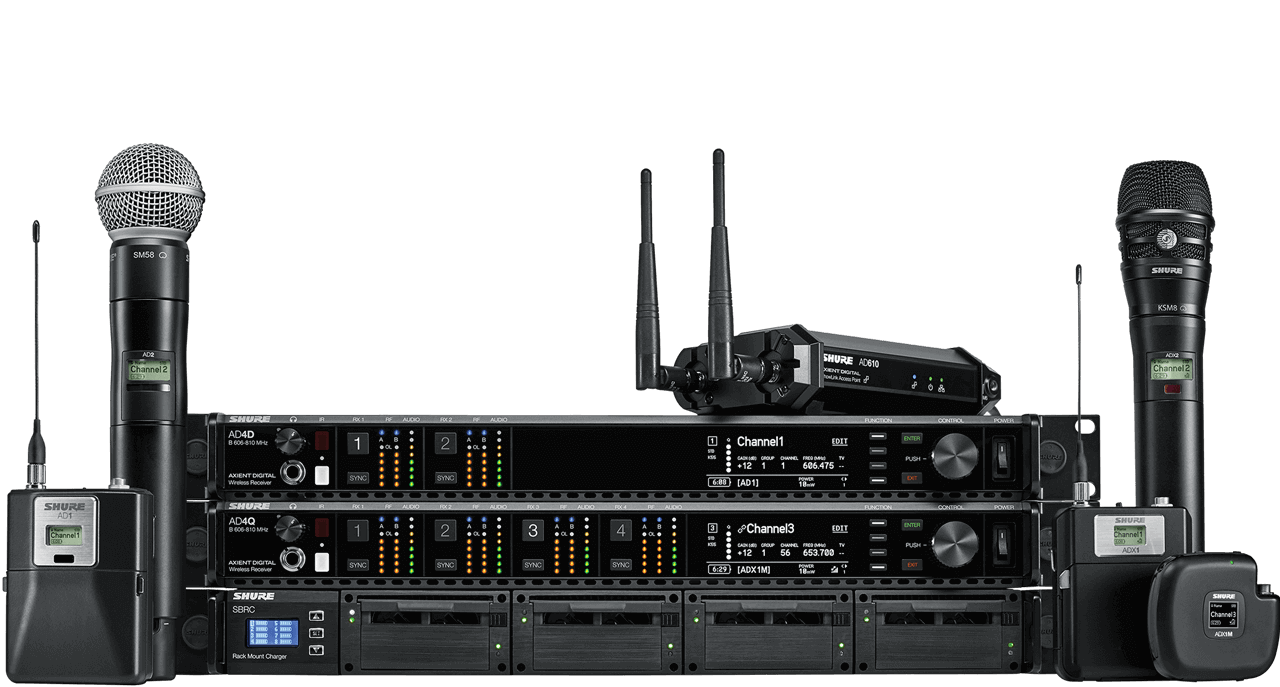

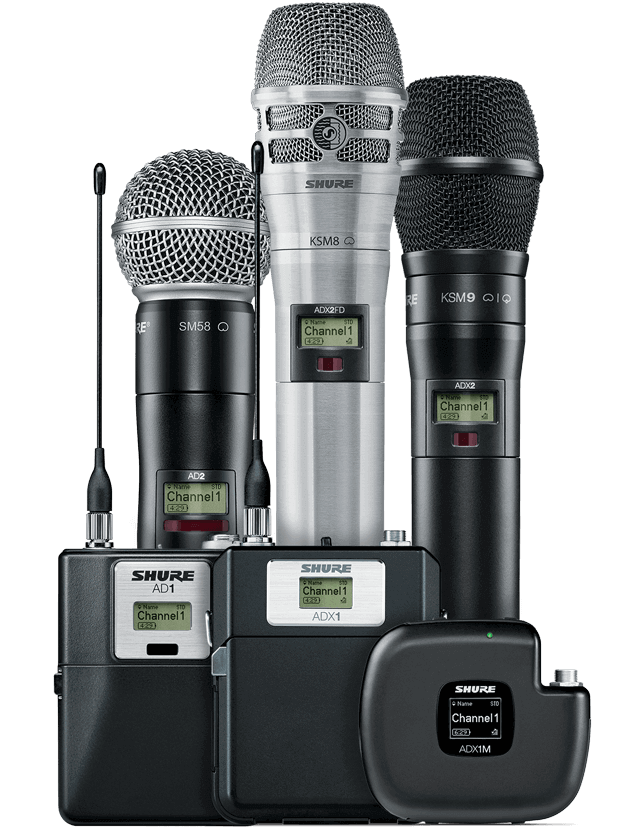

Transmitter Options
AD Series
Transmitters
With breakthrough RF performance and wide tuning up to 184 MHz, AD series wireless handheld and bodypack transmitters put professional quality digital audio within reach.
Available Now –View Product Details
ADX Series
Transmitters
ADX transmitters set the stage for exceptional performance, featuring wide tuning up to 184 MHz, interference protection, advanced rechargeability, streamlined design, and ShowLink remote control for real-time parameter adjustments right from the booth.
Available Mid 2018–Learn MoreCompare
High Density Mode: 2.9ms
High Density Mode: 2.9ms
17 ch / 6 MHz, 23 ch / 8 MHz
High Density Mode:
47 ch / 6 MHz, 63 ch / 8 MHz
17 ch / 6 MHz, 23 ch / 8 MHz
High Density Mode:
47 ch / 6 MHz, 63 ch / 8 MHz
19 ch / 8 MHz
17 ch / 6 MHz, 23 ch / 8 MHz
High Density Mode:
47 ch / 6 MHz, 63 ch / 8 MHz
13 ch / 8 MHz
Digital output (Dante, AES3, AES67): >125 dB, A-weighted
Digital output (Dante, AES3, AES67): >125 dB, A-weighted
>118 dB, A-weighted
AES3 Output:
>130dB, A-weighted
>120 dB, A-weighted, System Gain @ +10
Dante Output:
>130dB, A-weighted, System Gain @ +10
>105 dB, A-weighted
Onboard digital (AES3, Dante, & AES67)
Onboard digital (AES3, Dante, & AES67)
Onboard digital (AES3)
Onboard digital (Dante)
