wa304

en-GB

WA30xWA31x Declarations of Conformity UK

Document

Shure

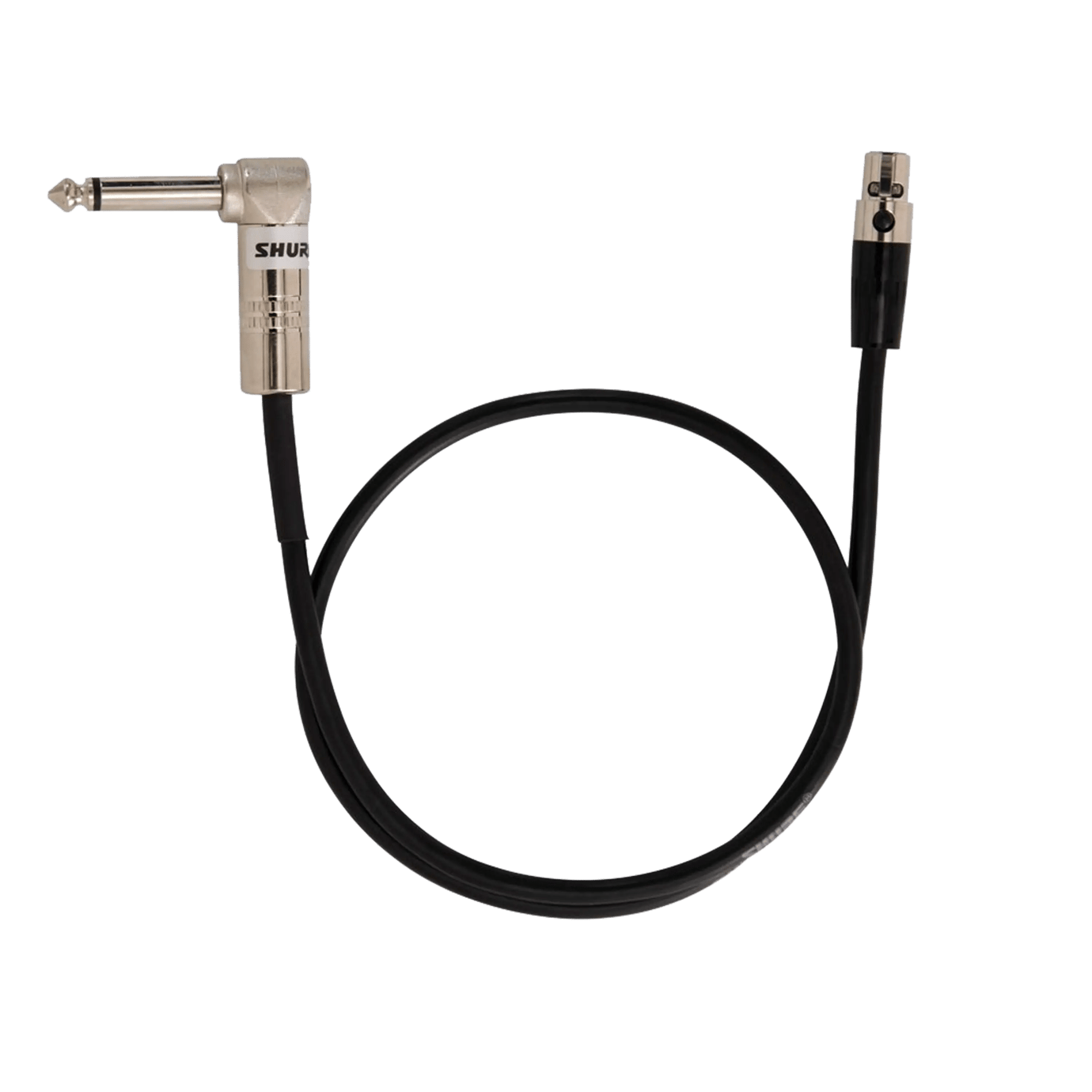

Cable, instrument, 2.5 foot (.75 m), 4-pin mini connector (TA4F) to 1/4-inch connector, used with AD1, ADX1, BLX1, GLXD1+, T1, SC1, PG1, PGX1, QLXD1, SLX1, SLXD1, LX1, U1, UC1, ULX, ULXD1, UR1, UR1M, UR1H and UT1 bodypack transmitters.

WA302 Instrument Cable

WA30x_WA31x Declarations of Conformity (EU)

Instrument cable connects a 1/4" jack to a 4-pin mini-connector for bodypack transmitters.

WA302

WA302,

6.3 mm

Instrument cable 3.5" Jack to 4-pin mini connecter, compatible with all Shure bodypack transmitters

Premium materials, including Neutrik straight &frac14;&rdquo; (6.3 mm) and locking REAN TA4F connectors, provide durability and lower cable handling noise and sets the WA305 apart for electric instruments, especially electric guitar and bass. The straight cable is ideal for Strat-type guitars with recessed jacks.

The threaded collar on the WA305 is compatible for use with the following bodypacks: GLXD1, GLXD1+, QLXD1, ULXD1-TQG, AD1-TQG, ADX1-TQG, SLXD1

Premium Guitar/Bass Cable with locking thread

WA305 User Guide

<ul>
	<li>3.0&rsquo; (0.9 m) rubber-coated instrument cable reduces handling noise and provides road-worthy durability.</li>
	<li>Premium straight &frac14;&rdquo; (6.3 mm) gold-plated Neutrik connector offer unmatched fidelity and corrosion-free performance</li>
	<li>Threaded-collar locking REAN TA4F connector securely connects your bodypack for unintterupted signal.</li>
</ul>

Premium Straight Instrument Cable with Locking TA4F Connector

GLX-D

GLX-D Advanced

QLX-D

Axient Digital

ULX-D

Connects Bodypack Transmitters to a guitar, bass or other electric instrument.

WA305

TQG (TA4F, 4-Pin Mini)

Premium 1/4"-to-TA4F guitar cable with locking thread connects the GLXD1 Bodypack to a guitar or bass. High quality metal 6,3mm plug.

SLX-D&reg; Digital Wireless delivers transparent, 24-bit digital audio and rock solid RF performance with easy setup and rechargeability options in a suite of versatile wireless system configurations. &nbsp;Featuring industry-leading digital wireless technology and design, the SLXD1 easily syncs with a wireless receiver. &nbsp;A variety of microphone choices guarantees the right solution for &nbsp;a wide range of applications, from day-long presentations to nighttime performances.&nbsp;

SLX-D Architect Specifications

SLX-D CAD Files

SLX-D Spec Sheets

SLX-D Frequency Compatibility Chart

SLX-D Quick Start Guide

SLX-D User Guide

SLX-D Command Strings

SLXD1 Declarations of Conformity (EU)

<ul>
	<li>Transparent 24-bit digital audio</li>
	<li>Extended 20 Hz to 20 kHz frequency range (microphone dependent)</li>
	<li>118&nbsp;dB dynamic range</li>
	<li>Digital predictive switching diversity</li>
	<li>Operating range of 100 m (300 ft.)</li>
	<li>44 MHz tuning bandwidth (region dependent)</li>
	<li>32 available channels per frequency band (region dependent)</li>
	<li>Up to 10 compatible systems per 6MHz TV band; 12 systems per 8 MHz band</li>
	<li>Easy pairing of transmitters and receivers over IR scan and sync</li>
	<li>Up to 8 hours from 2 AA batteries. Upgrade to the optional Shure SB903 Lithium-ion rechargeable battery to monitor battery charge status in hours and minutes, as well as battery life and health statistics.</li>
	<li>Choice of instrument cable or lavalier, headworn and instrument microphones</li>
	<li>Ergonomic and durable plastic construction</li>
</ul>

Bodypack

The SLXD1 easily syncs with a wireless receiver for confident presentation and performance - from lecture halls to live entertainment.

SLX-D

SLX-D How To: Set Up and Use

SLX-D How To: Lock and Unlock

SLX-D How To: Add a Receiver

SLXD1

SLXD1,

Bodypack Transmitter, Frequency Band Version: G59

SLXD1=-G59

Bodypack Transmitter, Frequency Band Version: H56

SLXD1=-H56

Bodypack Transmitter, Frequency Band Version: J53

SLXD1=-J53

Bodypack Transmitter, Frequency Band Version: K59

SLXD1=-K59

Bodypack Transmitter, Frequency Band Version: L56

SLXD1=-L56

The new GLX-D+ Wireless Guitar Pedal System features the WA305 Premium Guitar Cable, the GLXD1+ Digital Bodypack with SB904 rechargeable battery, and the GLXD6+ Guitar Pedal w/ tuner. Go wireless without compromising your tone or complicating your rig.

<ul>
	<li data-renderer-start-pos="398">New Dual Band technology provides reliable and consistent performance in 2.4 and 5.8GHz.</li>
	<li data-renderer-start-pos="398">Rugged metal chassis design that can be completely integrated into your pedalboard.</li>
	<li data-renderer-start-pos="398">GLXD6+ Guitar Pedal Receiver is compatible with 9V power supply in Pedalboards (minimum current: 400mA).</li>
	<li data-renderer-start-pos="398">​Transmitter battery life monitoring via highly visible LED segment display.</li>
	<li data-renderer-start-pos="398">Included Tuner with adjustable mode (Strobe / Needle) and selectable reference pitch (432 &ndash; 447 Hz).</li>
	<li data-renderer-start-pos="398">Included SB904 rechargeable battery delivers up to 12 hours of runtime.</li>
	<li data-renderer-start-pos="398">New &frac14;&quot; true bypass input allows you to switch between two instruments (one wired and one wireless guitar/bass) during live performance by toggling the push button on the pedal receiver. Integrated guitar input also enables easy transition from practice to live performance.</li>
	<li data-renderer-start-pos="398">Output &frac14;&quot; connector for easy daisy-chain connection with other pedals.</li>
</ul>

Digital Wireless Guitar Pedal System

GLX-D+ Dual Band Overview

Education

House of Worship

Performance

The new GLX-D+ Wireless Guitar Pedal System features the WA305 Premium Guitar Cable, the GLXD1+ Digital Bodypack, and the GLXD6+ Guitar Pedal. Go wireless without compromising your tone or complicating your rig.

E-Guitar/Bass

GLX-D+

GLX-D+ Dual Band Digital Wireless Featuring Nita Strauss

GLX D Plus 30sec 16x9 EN

How to Set Up GLXD6+ Pedal Receiver

Performance & Production

Electric Bass / Amp

Electric Guitar / Amp

GLXD16+

Club

Live Performance

Place of worship

Rehearsal Space

Notify me when in stock

GLXD16+UK-Z4

BLX® Wireless Systems

BLX4R CAD

BLX Brochure

BLX Quick Start Guide

BLX4 CAD

BLX User Guide

BLX with BLX4R User Guide

BLX Wireless Frequency Compatibility Chart

BLX Spec Sheet

BLX Custom Handle Installation User Guide

BLX Color Handle Installation User Guide

BLX88 CAD

Wireless Systems Comparison Chart

SUPERIOR AUDIO - Perform with Confidence
Get the show going with no wires attached. Professional Shure sound for every band and any vocal need.

RELIABLE SIGNAL - Extend your range
With a range of up to 300 feet (100m), you can take the show into the crowd without interruption.

EASY SETUP &ndash; Own the stage
BLX will have you up and running in record time with one-touch scan and selection.

BATTERY LIFE &ndash; 14 hours of power
Because BLX transmitters get up to 14 hours of power from a single pair of AA batteries, the show can go on and on (and on).

SYSTEMS EXPANSIONS &ndash; Run up to 12 channels per frequency band*
You&rsquo;ll probably need to find a bigger stage before you run out of channels.
*Note: region and environment dependent.

VERSATILITY INCLUDED &ndash; You&rsquo;ve got options
An impressive variety of Shure microphones are available in BLX systems, so you can find what works for you.

Wireless freedom, made simple

Versatility included

Extend the stage

Why It's Better

BLX Wireless Overview

Recording

The Shure BLX Wireless Microphone System offers professional quality audio with a simple setup and an intuitive interface for legendary sound performance.

Fitness Instruction

Vocals

Presentation

Other Instruments

Karaoke

How It Works

Shure BLX How To: Set Up the Hardware

Shure BLX How To: Perform a Soundcheck

Shure BLX How To: Set Best Channel

Shure BLX4R How To: Set Up the Hardware

Shure BLX4R How To: Set the Best Channel

Shure BLX4R How To: Perform a Soundcheck

"To sum the Shure BLX wireless system up, I would say for the money it performs beautifully.  Every piece of gear is weighed against its price and this one offers a lot of bang for the buck."

Live2Play, 19.01.2014

Quality that’s in the Details

When performance is freed from its wires, it can go to exciting places. But noise and dropouts can stop it cold. BLX® Wireless makes it simple to get great sound out of a dependable wireless system. And when you can go wireless without worry, you can perform without limits.

Brass

Choir

Harmonica

Speech

Woodwinds

BLX,

Fitness Center

Wireless Workbench 7

ShurePlus™ Channels

<h4>Where can the QLX-D be used?</h4>

This digital wireless system is ideal for mid to large-sized events and installations, such as presentation spaces, music venues and churches. A clear uninterrupted signal is maintained within 100 m of the receiver.

<h4>What digital wireless audio quality does it offer?</h4>

The QLX-D offers professional sound quality. It uses transparent 24 bit audio to give a wider frequency response, whilst its 120 dB dynamic range provides excellent signal to noise performance. Additionally, it has a very low system latency of just 2.9 milliseconds. Its extended, flat frequency response (20 Hz to 20 kHz, depending on the microphone) allows the QLX-D to cover applications with diverse requirements.

<h4>Which components does the QLX-D comprise?</h4>

QLXD4 Wireless Receiver:

<ul>
	<li>The QLXD4 is a half rack digital wireless receiver which features an Ethernet port for external connectivity, allowing compatibility with Shure Wireless Workbench 6 software, and the ShurePlus Channels iOS app.</li>
	<li>It can also integrate with third-party control systems, including AMX and Crestron.</li>
</ul>

Transmitter options:

<ul>
	<li>QLXD1 Wireless Bodypack Transmitter: The QLXD1 is compatible with a selection of Shure lavalier, headset, and clip on instrument microphones.</li>
	<li>QLXD2 Wireless Handheld Transmitter: To tailor sound for specific purposes, the QLXD2&rsquo;s microphone cartridge is interchangeable with the full range of Shure dynamic and condenser cartridges, which offer a diverse set of sound characteristics and polar patterns.</li>
</ul>

All components have a rugged, all-metal construction to handle demanding environments.

<h4>What are its wireless features?</h4>

The QLX-D offers advanced AES-256 encryption for wireless transmission. The transmitters give up to 10 hours of continuous wireless use with compatible Shure lithium ion rechargeable batteries. These batteries also accurately report the remaining run time in hours and minute.

Alternatively, the transmitters can run on standard AA batteries for up to 9 hours. Transmitter RF power can be set to 1 mW or 10 mW as required, to optimise battery life.

The QLX-D offers RF spectrum efficiency within the UHF range. Up to 22 transmitters can simultaneously operate on an 8 MHz channel. Additionally, frequency bands cover up to 72 MHz, allowing QLX-D users to operate more channels on air than with any other wireless system in its class.

<h4>How easy is it to set up and use the QLX-D?</h4>

The QLX-D offers

<ul>
	<li>Channel scan and IR sync make finding and assigning an open frequency quick and easy. Network Scan then allows a receiver to deploy frequencies to all networked receivers within the same frequency band</li>
	<li>Shure proprietary gain ranging optimises the system&rsquo;s dynamic range for any level of input source, eliminating the need for manual transmitter gain adjustments</li>
	<li>The receiver features an internal DHCP client for automatic network configuration</li>
	<li>Advanced frequency coordination with Shure Wireless Workbench&reg;</li>
</ul>

<h4>QLX-D FIRMWARE UPDATE</h4>

Shure periodically updates device firmware to add features and improve system performance. There is a new firmware available which can be uploaded to this product. Please note that all systems need to operate on the same firmware, e.g. 2.0 for full functionality. To update your products please download the application and update devices to firmware version 2.0 or higher.

QLX-D® Digital Wireless Systems

QLX-D CAD

QLX-D User Guide

QLX-D Brochure

QLX-D Frequency Compatibility Chart

QLX-D Command Strings

QLX-D Spec Sheet

QLX-D Architect Specifications

<ul>
	<li>24 bit audio with 120 dB dynamic range</li>
	<li>2.9 milliseconds system latency</li>
	<li>Rugged, all metal construction</li>
	<li>IR sync between transmitters and receivers</li>
	<li>AES-256 encryption for wireless transmission</li>
	<li>Up to 10 hour transmitter battery life with Shure lithium ion rechargeable batteries, with remaining</li>
	<li>run time displayed in hours and minutes accurate to 15 minutes</li>
	<li>Up to 9 hour transmitter battery life with standard AA batteries</li>
	<li>Transmitter RF power can set to 1 mW or 10 mW</li>
	<li>Up to 22 transmitters can simultaneously operate on an 8 MHz channel within the UHF range</li>
	<li>Frequency bands cover up to 72 MHz</li>
	<li>Automatic channel scan</li>
</ul>

True to the source

Persistent power

Secure sound

Why It’s Better

Shure QLX-D Digital Wireless System

Broadcast/ENG

Commercial Installation

Corporate

Film & TV production

Government

Touring/Rental

Digital wireless system combines robust wireless performance with easy set-up and digital audio quality.

Theater

Conference

Playlist: Shure QLX-D Digital Wireless System

QLX-D Digital Wireless Systems: QLXD1 Digital Wireless Bodypack

QLX-D Digital Wireless Systems: QLXD2 Digital Wireless Handheld

QLX-D Digital Wireless Systems: Spectrum Efficiency

Medium-sized venues demand more wireless capability. QLX-D® Digital Wireless is more than ready for the challenge. The robust RF performance lets you step up to an all-round higher class of audio, while protecting the signal at every level. It’s an affordable upgrade and a smart investment in your sound.

QLX-D,

Conference Room

Corporate Presentation

Auditorium

Lecture Hall

Theater Stage

The new GLX-D+ Dual Band Wireless Bodypack System features the WA302 guitar cable and the GLXD4+ tabletop receiver. The perfect combination of the automatic frequency management with the new Dual Band Technology provides reliable and consistent performance, while Shure proprietary Lithium-Ion rechargeable batteries provide up to 12 hours of use. Go wireless without complication.

Digital Wireless Bodypack System

The new GLX-D+ Dual Band Wireless Bodypack System features the WA302 guitar cable and the GLXD4+ tabletop receiver. Go wireless without complication.

GLXD14+

GLXD14+UK-Z4

QLXD1 Bodypack Transmitter

QLXD1 CAD

QLXD1 Declarations of Conformity (EU)

<ul>
	<li>20 Hz to 20 kHz frequency range with flat response (actual response is microphone dependent)</li>
	<li>Over 120 dB of dynamic range - no transmitter gain adjustments needed</li>
	<li>AES 256-bit encryption for secure transmission</li>
	<li>Up to 9 hours continuous use with 2 x AA alkaline batteries</li>
	<li>Optional Shure SB900 lithium ion rechargeable battery provides up to 10 hours of continuous use and reports remaining runtime in hours and minutes</li>
	<li>External charging contacts for docked charging</li>
	<li>Backlit LCD with easy to navigate menu and controls</li>
	<li>Selectable display mode showing group/channel, frequency, or battery runtime</li>
	<li>100 meter (300 feet) line-of-sight operating range</li>
	<li>4-Pin male mini connector (TA4M)</li>
	<li>Rugged metal construction</li>
	<li>Detachable &frac14; wave antenna</li>
	<li>Frequency and power lockout</li>
</ul>

Wireless bodypack transmitter compatible with QLX-D™ Digital Wireless Systems.

Featuring transparent 24 bit digital audio quality and incredibly efficient RF spectrum usage, the QLXD1 bodypack transmitter is ideal for wireless vocals and instruments in presentation spaces, music venues, and houses of worship. Easy to use, the QLXD1 quickly syncs with a wireless receiver over IR at the push of a button and maintains clear, uninterrupted signal over its entire 100 m (330 ft.) range. All metal construction ensures durability, and a wide selection of compatible microphone choices offer legendary Shure sound signatures.

QLXD1

QLXD1,

Bodypack Transmitter, Frequency Band Version: G51 (470-534 MHz)

QLXD1=-G51

Bodypack Transmitter, Frequency Band Version: H51 (534-598 MHz)

QLXD1=-H51

Bodypack Transmitter, Frequency Band Version: K51 (606-670 MHz)

QLXD1=-K51

Bodypack Transmitter, Frequency Band Version: L52 (632-694 MHz)

QLXD1=-L52

Bodypack Transmitter, Frequency Band Version: V51 (174-216 MHz)

QLXD1=-V51

Bodypack Transmitter, Frequency Band Version: Z18 (1785-1805 MHz)

QLXD1=-Z18

The BLX1 bodypack has a lightweight and durable design. Ergonomically designed to fit comfortably in hand, with adjustable gain control. The BLX1 bodypack transmitter is included in BLX and BLX-R Analogue Wireless Systems. You will get up to 14 hours of continuous use using 2 x AA batteries (included) and an operating range of 100m.

Bodypack Transmitter

BLX1 Declarations of Conformity (EU)

<ul>
	<li>Power and battery status LED</li>
	<li>Adjustable gain control</li>
	<li>Quick and easy frequency matching</li>
	<li>AA batteries (included) provide up to 14 hours of continuous use</li>
	<li>100 m (300 ft.) operating range (line of sight)</li>
</ul>

Wireless bodypack transmitter offers a lightweight, durable design and adjustable gain control.

BLX Wireless

Analogue wireless bodypack BLX1 for use as part of BLX and BLX-R Analogue Wireless Systems.

BLX1

Bodypack Transmitter, Frequency Band Version: H8E (518-542 MHz)

BLX1=-H8E

Bodypack Transmitter, Frequency Band Version: K3E (606-630 MHz)

BLX1=-K3E

The ULXD1 is a wireless bodypack transmitter compatible with ULX-D Digital Wireless Systems. With a rugged yet lightweight aluminum case, the ULXD1 delivers uncompromising audio quality and RF performance, AES 256-bit encryption for secure transmission, and advanced rechargeability options for professional sound reinforcement applications.

ULXD1 Digital Wireless Bodypack Transmitter

ULXD1 Declarations of Conformity (EU)

<ul> <li>AES 256-bit encryption for applications for which secure transmission is needed</li> <li>Proprietary Shure Gain Ranging optimizes the system&rsquo;s dynamic range for any input source, eliminating the need for transmitter gain adjustments</li> <li>Shure SB900 Lithium-Ion rechargeable battery provides up to 12 hours of battery life, precision metering, and zero memory effect</li> <li>External charging contacts for docked charging (with the SBC200 Dual Docking Charger)</li> <li>Backlit LCD with easy to navigate menu and controls</li> <li>Rugged metal construction</li> <li>Detachable &frac14; wave antenna</li> <li>Frequency and power lockout &nbsp;</li> </ul> &nbsp;

Up to 12 hours of use with rechargeable battery. 330 ft (100 m) operating range. TA4M and LEMO3 versions available.

The ULXD1 is a wireless bodypack transmitter compatible with ULX-D Digital Wireless Systems.

WA304

Related Products

Reviews
